Military system and Modules
- Military rugged (single/double head) multi-function mission console.
- Military Rudder angle display module
- 1553 interface control unit
- Military Regulation 19" Rack Control Box
- Battlefield control module
- Double cabinet integrated test bench system
- VME I/O circuit board test station
- Redundant Power Module (Model no.RDP-AD28)
- KVM Module (Model no. KVM-1821)
- Multifunctional Signal Acquisition Test System
- Multi-channel serial signal test box
- Rugged Portable Console
- Customized Nvidia Jetson NX carrier card
- System control Box
- Extender Module (VGA, DVI, USB)(Model no. EVTDR02)

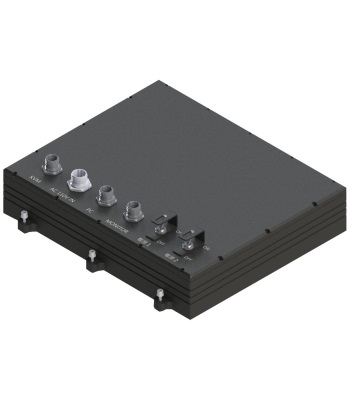

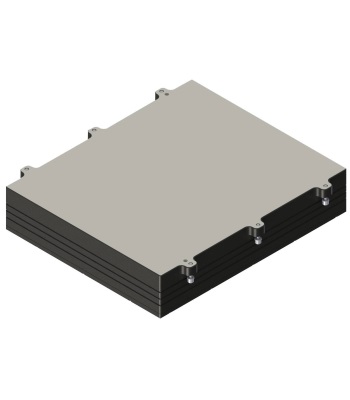

Redundant Power Module (Model no.RDP-AD28)
Product picture
Product picture
- The RDP-AD28 module using two power supplies.
- Input Voltage：90~264VAC /47Hz~65Hz
- Output Voltage：24±0.5% VDC
- Output Current：25A (maximum)
- Output Power：600W
- Power factor： 0.99 (typical)
- Support OTP, OVP, OCP and SCP circuit protection
- Operating Temperature：-30 ~ +75°C
- Conduction-cooled
- MIL-STD-810G and MIL-STD-461G Design
- Dimensions：360mm (L) x 330mm (W) x 74mm (H) (H)
- Weight：9±0.5KG
- (Please contact us for specification or customized service.)
